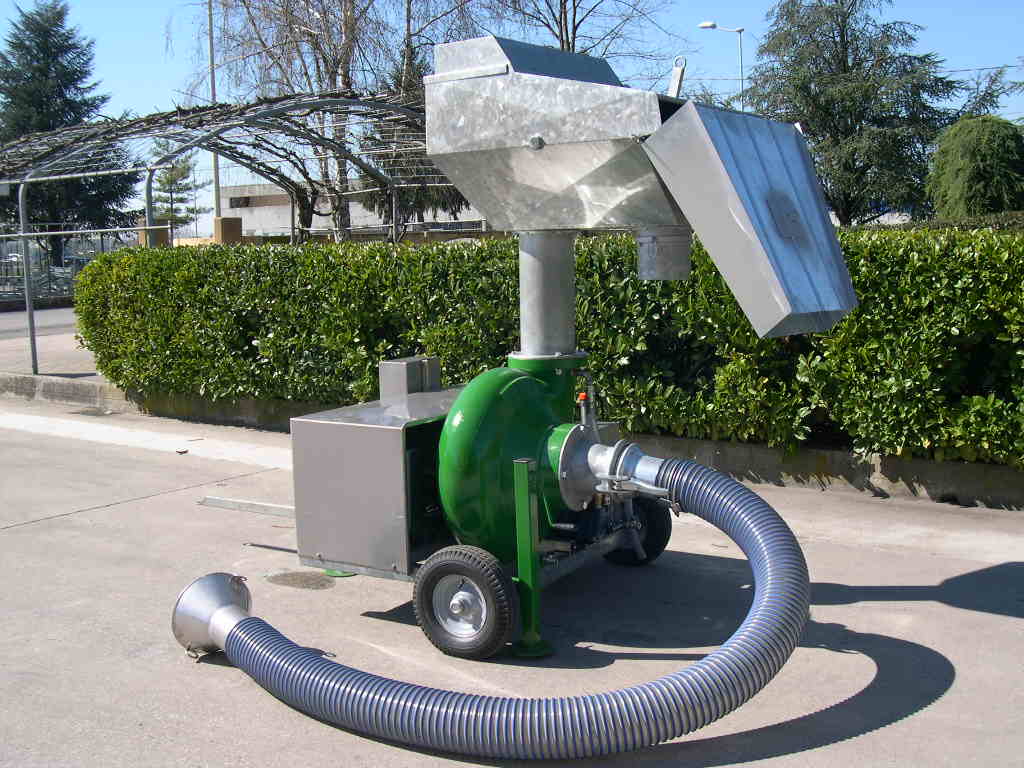

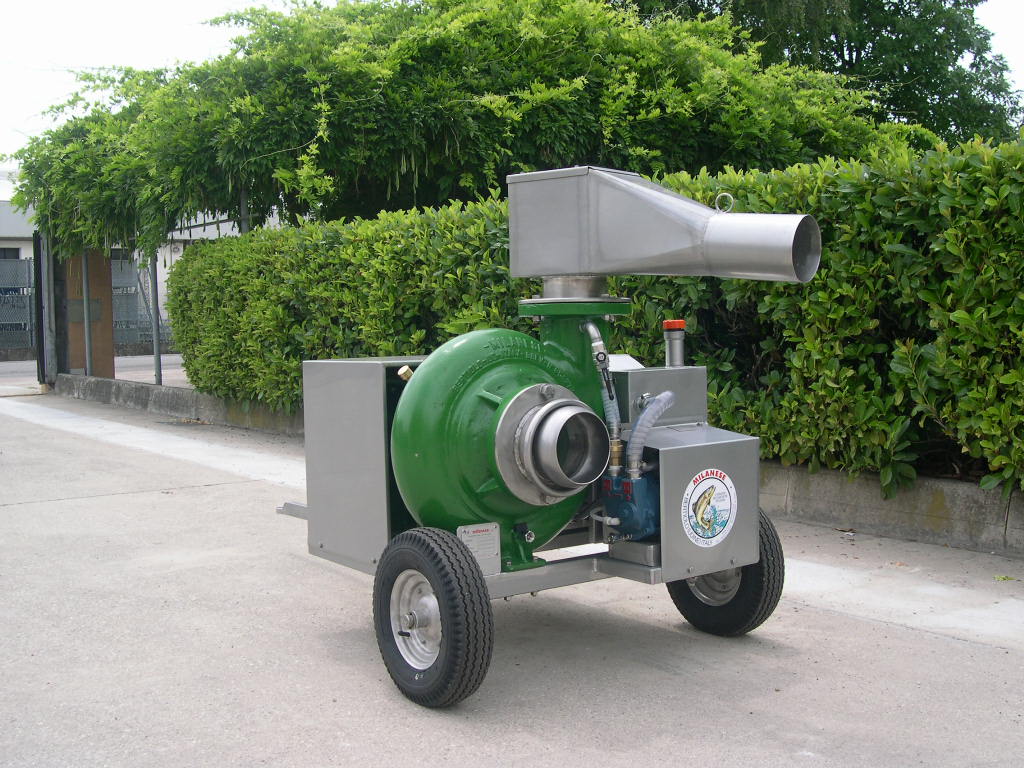

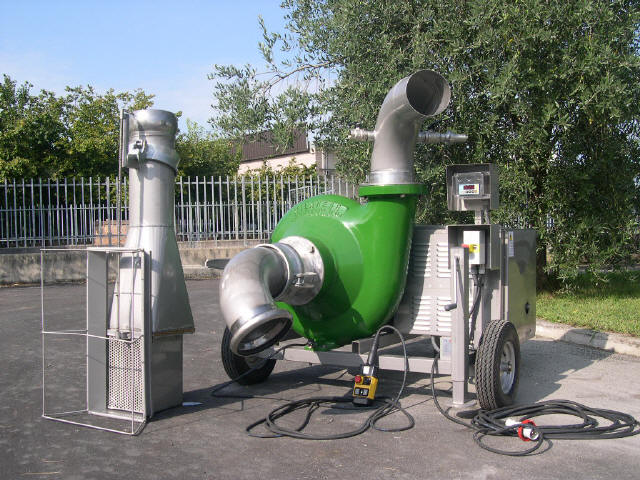

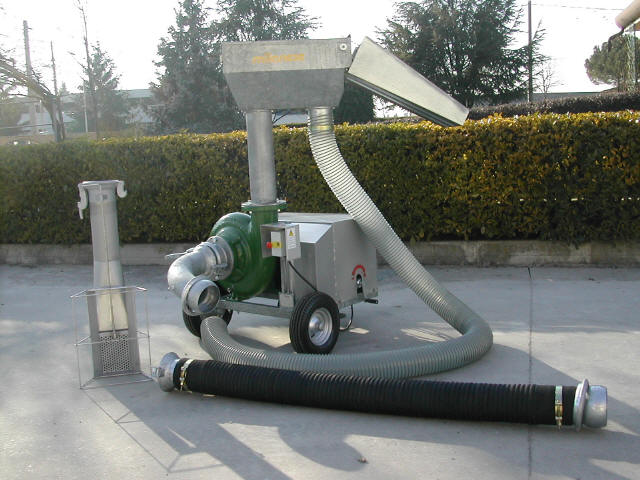

Patented central body in anticorrosive alluminium league, device
water/fish in hot galvanized steel with internal gille, turn variator to
rev for different sizes of fish, electric motor 5,5 hp, volts 220/400
threephases or different at request, hot galvanized steel truck with
wheels, 2 mt long flexible sucking hose diam. 150 mm, stainless steel
valve, bends, pipe fittings and all accessories. Discharging steel pipe
diam. 150 mm and long 1 m (if requested it is possible
to joint further flexible hose).
Optionals:

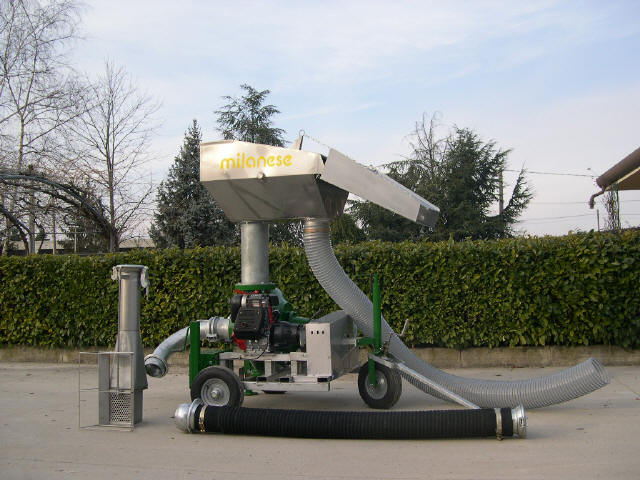

- with diesel engine
- with gasoline engine
- for cardan working
- self-priming
- with electronic inverter
-
Art. 185/vs:
Max. fish weight |
0,450 |
kg |
Dimensions |
125x110x190 |
cm |
Weight |
345 |
kg |
Performance |
15000 |
kg/h |
Max. fish weight |
0,450 |
kg |
Dimensions |
125x110x150 |
cm |
Weight |
285 |
kg |
Performance |
15000 |
kg/h |
Max. fish weight |
0,9 |
kg |
Dimensions |
150x150x210 |
cm |
Weight |
500 |
kg |
Performance |
30000 |
kg/h |
Max. fish weight |
0,450 |
kg |
Dimensions |
135x110x120 |
cm |
Weight |
350 |
kg |
Performance |
15000 |
kg/h |
Max. fish weight |
0,9 |
kg |
Dimensions |
160x150x220 |
cm |
Weight |
500 |
kg |
Performance |
30000 |
kg/h |
